Exploration of BCI headbands, headsets and electrodes

Towards BCI (Brain-Computer-Interface): At this point the small electrodes with a headband that supports repositioning seem to be the best option for simple use cases. Below is a longer story by Michal Oblastni.

First attempt: ask those who did it

There is an article by Giovanni Acampora, Pasquale Trinchese and Autilia Vitiello, “A Dataset of EEG Signals from a Single-Channel SSVEP-Based Brain-Computer Interface”, https://www.researchgate.net/publication/349023244_A_Dataset_of_EEG_signals_from_a_single-channel_SSVEP-based_Brain_Computer_Interface.

Michal contacted the authors with questions, to be answered yet:

  • I was especially interested in the EEG-SMT headset you used. Would you mind sharing the 3D model you used for printing it?

EEG paper headset

  • I also really liked how you enhanced the electrode using gold-plated pins, very clever.

EEG paper electrodes

What are these pins typically called when ordering them online or from electronics suppliers? The closest match I’ve found so far is this: https://www.amazon.co.uk/MicroMaker-Adafruit-Accessories-Through-Inline/dp/B0CVMCXD8V

Headband

After doing some digging, I found out you can use the EEG-SMT like this:

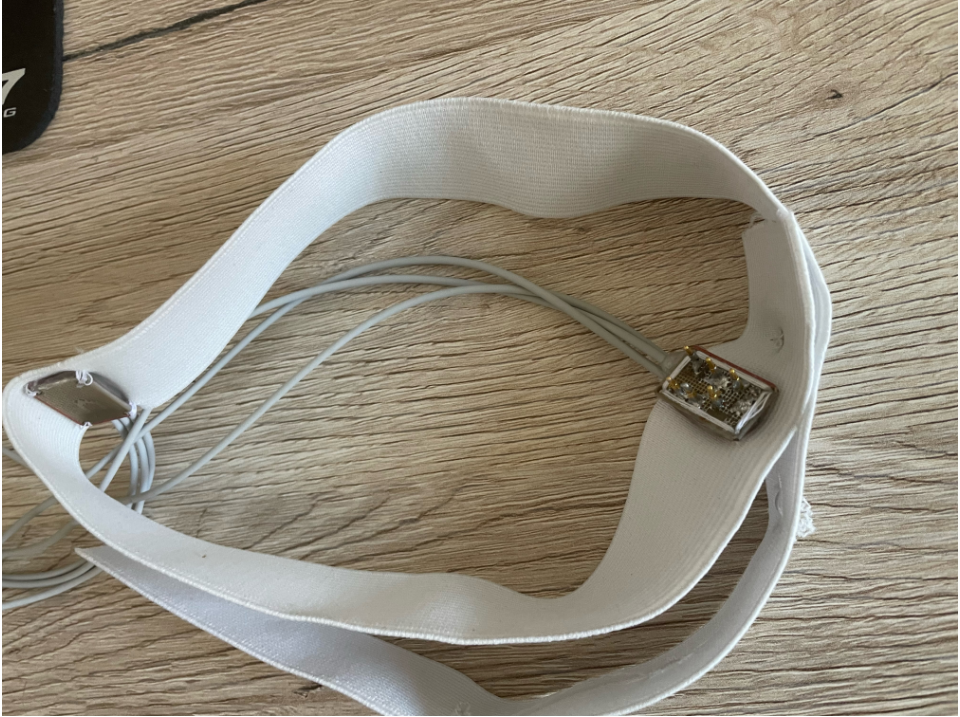

EEG headband example

A cheap elastic headband (under 10 EUR) works well. The EEG-SMT electrodes have 4 small holes, so you can sew them onto the band using a needle and thread.

Electrodes

While playing with my EEG-SMT device, I found it’s possible to solder an ordinary wire to the electrode, and touch your head with that wire. It seems to work the same.

That means it’s possible to buy a 4 gold plated electrodes. One costs €2.95. They are single wire electrodes. The single wire can be soldered to the EEG-SMT electrodes and everything works. https://www.aliexpress.com/item/1005008999662099.html

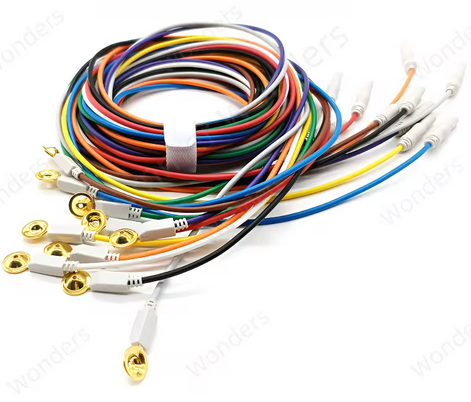

Electrodes set

And I also found a cheap, adjustable EEG headband that allows repositioning these electrodes quickly and easily. https://www.aliexpress.com/item/1005008922828624.html

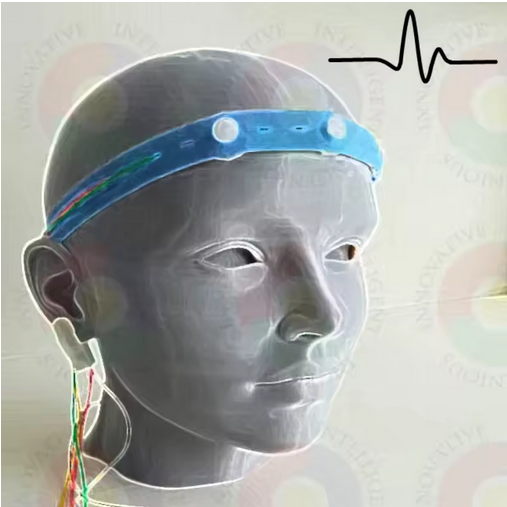

Sample headband

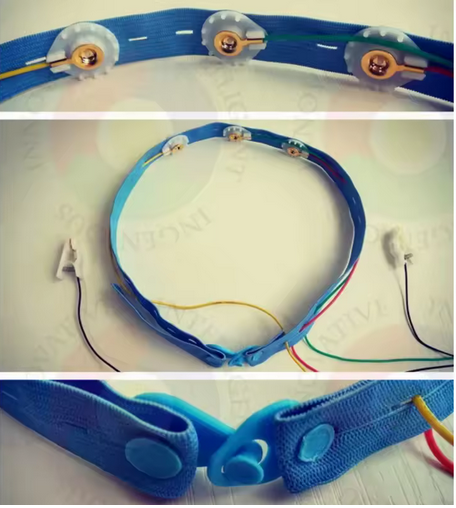

Sample headband

Then, I found an earclip electrode which can, again, be used and the wire can be soldered to the EEG-SMT DLR electrode: https://www.aliexpress.com/item/1005005883419082.html

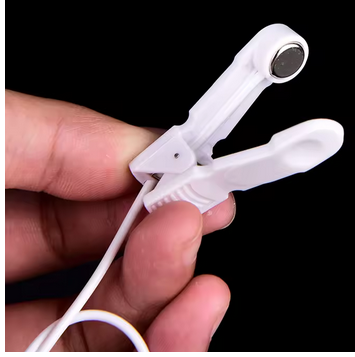

Earclip electrode

With the earclip and small, normal electrodes the signal will be really good. I can also see how comb shaped dry electrodes could be used: https://www.aliexpress.com/item/1005008709097720.html

Comb shaped electrode

So, at this point the small electrodes with a headband that supports repositioning seem to be the best option for simple use cases.

Learning to 3D print

If you’ve got a soldering iron and some solder, you can attach gold-plated pins (or even basic ones) directly to the electrodes. It’s a quick fix, but not ideal long term.

A custom 3D-printed headset is obviously a better and more comfortable option, but it does mean modeling it properly in CAD first.

I ended up buying a Creality Ender-3 V3 KE 3D printer. The print area is 220x220x240 mm, so I had to split the headset into two pieces using Creality Print.

After printing both parts, I realized the design is pretty basic and still needs some CAD work—mainly to make it easier to mount the electrodes.

This YouTube video gives a good overview of different CAD tools: https://www.youtube.com/watch?v=IUoTKbGAlhk&ab_channel=MakeWithTech%28MakeWithTech%29

One great option is TinkerCAD. It’s 100% free, browser-based, used by students worldwide, and you can log in with a Google account—no separate signup needed: https://www.tinkercad.com
